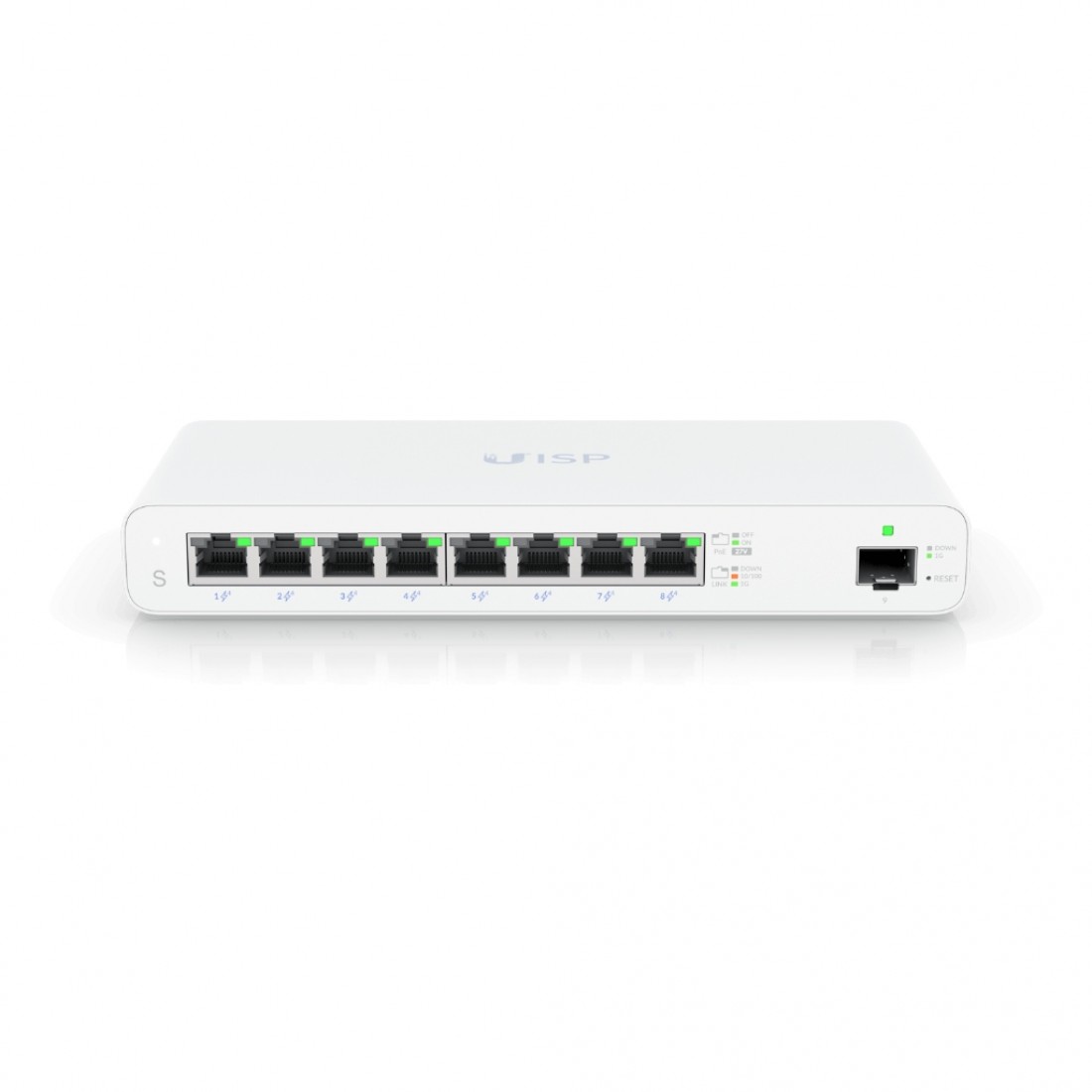

UISP Switch for lbe and Lap UISP-S

$200.00

  • Model:UISP-S
  • Weight:500.00g
  • Dimensions:10.00in x 10.00in x 10.00in
Category:

Description

Features:

  • Interface: (8) GbE RJ45 ports with 27V passive PoE output / (1) 1G SFP port
  • 110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port (4-pair)
  • Port isolation, speed limiting, and DHCP snooping functionality
  • Easy Bluetooth setup with the UISP Mobile app
Mechanical
Dimensions 210.4 x 95 x 29 mm (8.2 x 3.7 x 1.1″)
Weight 610 g (1.3 lb)
Enclosure material Polycarbonate
Hardware
Total non-blocking throughput 9 Gbps
Switching capacity 18 Gbps
Forwarding rate 13.392 Mpps
Networking interface (8) GbE RJ45 ports
(1) 1G SFP port
Management interface Ethernet In-Band

Bluetooth BLE

Power method External AC/DC adapter
Power supply 27V DC, 4.4A power adapter (included)
Supported voltage range 24—28V DC
Max. power consumption 8W (Excluding PoE output)
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
PoE
PoE interface (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 😎 or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 😎
Total available PoE 110W
Max. passive PoE wattage per port 30W/27V DC
Passive PoE voltage range 27V DC
LEDs
System Status
RJ45 data ports PoE
Speed/link/activity
SFP data ports Link/activity
