Description

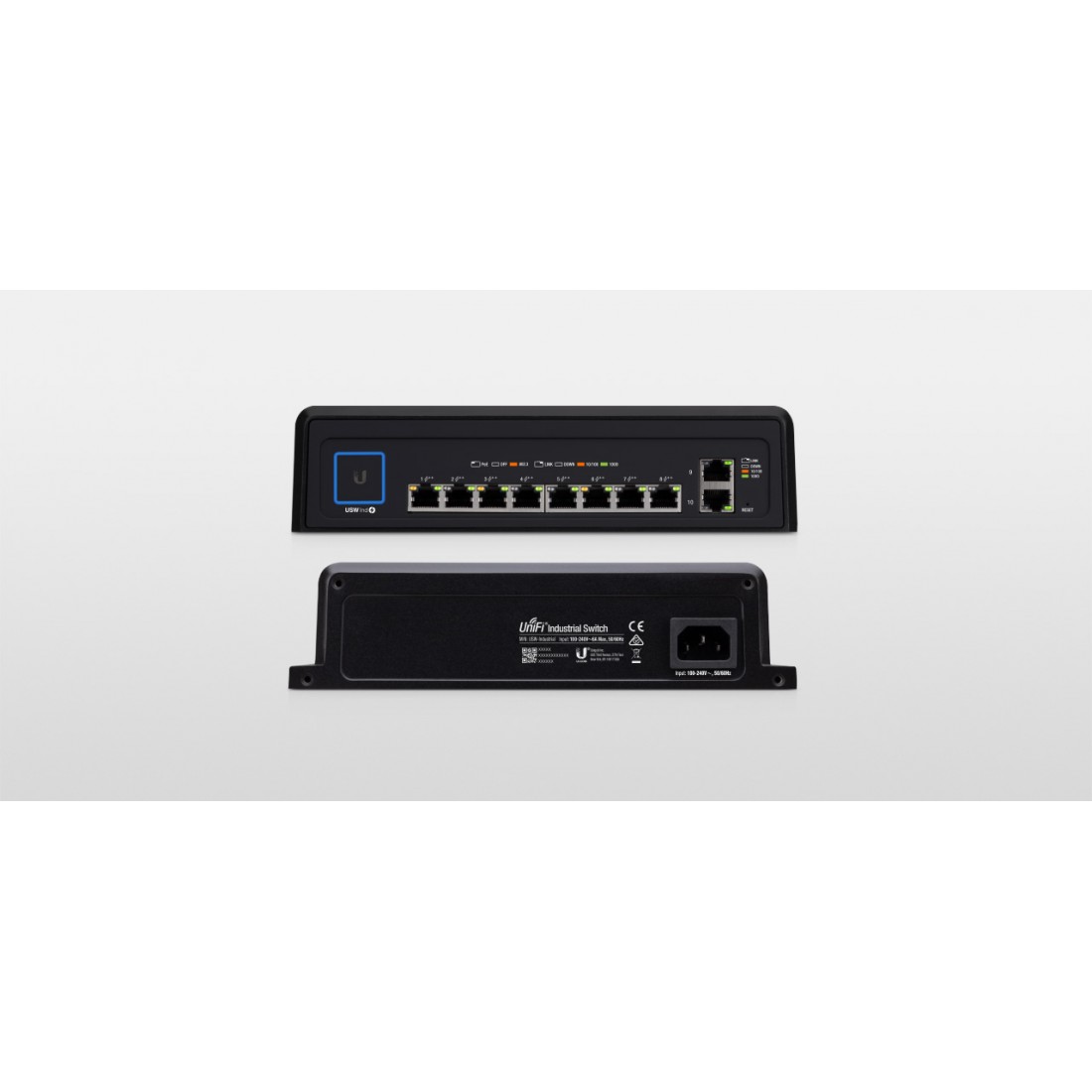

| USW-Industrial | |
|---|---|
| Dimensions | 254 x 235 x 60 mm (10 x 9.25 x 2.36″) |
| Weight | 3.85 kg (8.49 lb) |
| Enclosure Characteristics | Die-Cast Aluminum (ADC12) with Black Powder Coated Finish |
| Interfaces |
Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports, (2) 10/100/1000 RJ45 Ports
Management: Ethernet In-Band
|
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 100 – 240 VAC, 50/60 Hz Universal Input |
| Power Supply | AC/DC, Internal, 450W DC |
| Supported Voltage Range | AC Input: 100 to 240VAC, Max. 6A |
| Max. Power Consumption (Excluding PoE Output) | 20W |
| LEDs | System: Status RJ45 Ports: PoE, Speed/Link/Activity |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC |
| PoE | |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
| Max. PoE Wattage per Port by PSE | 802.3bt 60W |
| Voltage Range 802.3 PoE Mode | 50-57V |
| Max. Total PoE Power Budget | 430W |
