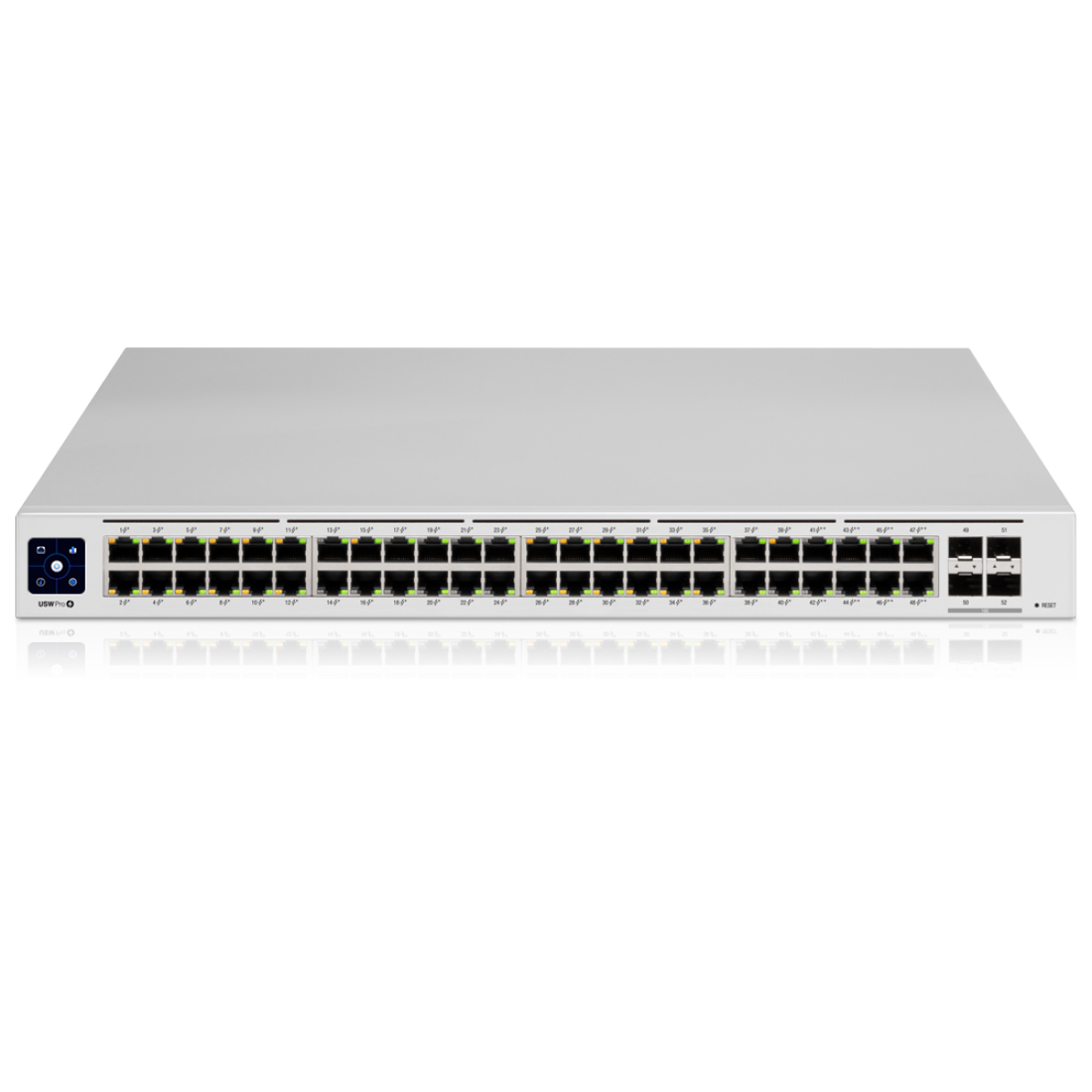

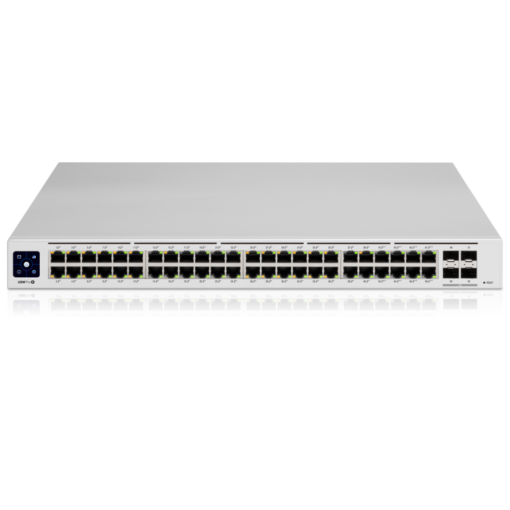

Ubiquiti Switch Pro 48 USW-Pro-48

Description

Mechanical
Dimensions    442.4 x 285.4 x 43.7 mm
(17.42 x 11.24 x 1.72″)
Weight
With Brackets    4.00 kg (8.82 lb)
4.09 kg (9.02 lb)
Interfaces
Networking

Management
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput    88 Gbps
Switching Capacity    176 Gbps
Forwarding Rate    130.944 Mpps
Power Method
Universal Input
USP RPS DC Input
100-240VAC, 50/60 Hz
11.5VDC, 5.22A
Power Supply    AC/DC, Internal, 60W
Voltage Range    100 to 240VAC
Max Power Consumption    60W
LEDs
RJ45 Data Ports
SFP+ Data Ports
Speed/Link/Activity
Link/Activity
ESD/EMP Protection    Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration    ETSI300-019-1.4 Standard
Operating Temperature    -5 to 45° C (23 to 113° F)
Operating Humidity    10 – 90% Noncondensing
Certifications    CE, FCC, IC
