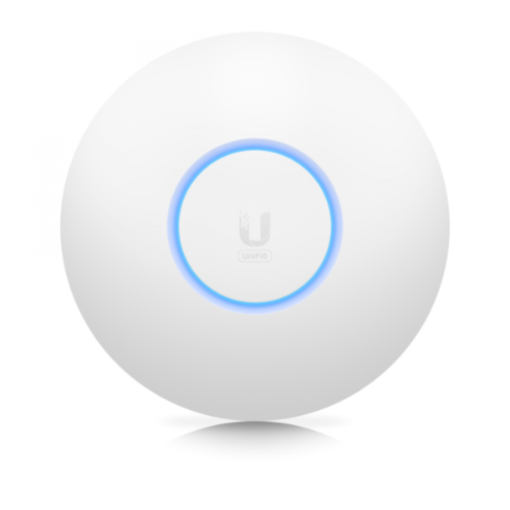

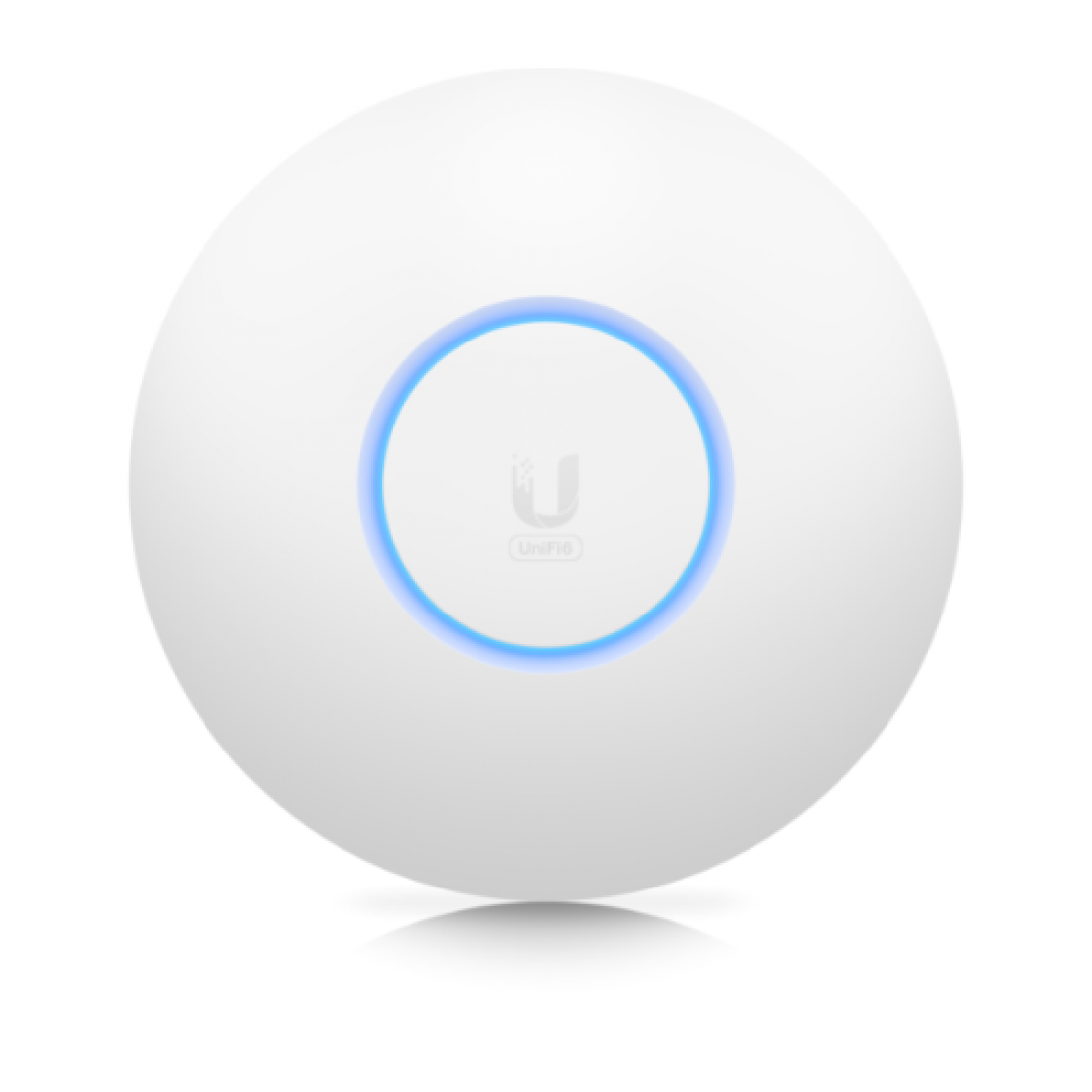

Model: U6-IW Weight: 500.00g

Description

Mechanical
Dimensions    Ø197 x 35 mm (Ø7.76 x 1.38″)
Weight    Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb)
Enclosure material    Plastic
Mounting material    SGCC steel
Weatherproofing    IP54
Hardware
Management interfaces    Ethernet
Bluetooth
Networking interface    (1) GbE RJ45 port
Button    Factory reset
LEDs    White/Blue
Power method    802.3at PoE+
Power supply    UniFi PoE switch
48V, 0.5A PoE adapter (not included)
Supported voltage range    44 to 57VDC
Max. power consumption    13W
Max. TX power
2.4 GHz
5 GHz
22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
4 dBi
6 dBi
Mounting    Wall/ceiling (included)
Operating temperature    -30 to 60° C (-22 to 140° F)
Operating humidity    5 – 95% noncondensing
Certifications    CE, FCC, IC
Software
WiFi standards    802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security    WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID    8 per radio
VLAN    802.1Q
Advanced QoS    Per-user rate limiting
Guest traffic isolation    Supported
Concurrent clients    300+
Zero wait DFS    Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a    6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b    1, 2, 5.5, 11 Mbps
802.11g    6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)    6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5)    6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)    7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
