Description
Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
Highlights
- Designed for installations from desktops to wiring closets
- Ideal for SD-Branch deployments
- Optimal for converged network environments; enabling voice, data, and wireless traffic to be delivered across a single network
- Centralized security and access management from FortiGate interface
- Supports non-FortiLink deployments through onboard GUI, API, or command line configuration
- Up to 48 ports in a compact 1 RU form factor
- Stackable up to 300 switches per FortiGate depending on model
- Supports Wire-speed switching and Store and Forward forwarding mode
Specifications:

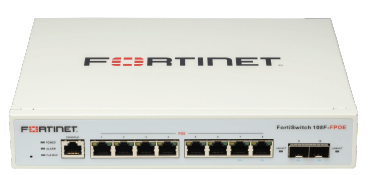

| FORTISWITCH 108F | FORTISWITCH 108F-POE | FORTISWITCH 108F-FPOE | |
|---|---|---|---|
| Hardware Specifications | |||
| Total Network Interfaces | 7x GE RJ45, 1x GE/POE-PD RJ45, and 2x GE SFP | 8x GE RJ45 and 2x GE SFP | 8x GE RJ45 and 2x GE SFP |
| Dedicated Management 10/100 Port | 0 | 0 | 0 |
| RJ-45 Serial Console Port | 1 | 1 | 1 |
| Form Factor | Desktop | Deskop / 19” rack bracket | Deskop / 19” rack bracket |
| Power over Ethernet (PoE) Ports | 0 | 8 (802.3af/at) | 8 (802.3af/at) |
| PoE Power Budget | 0 | 65 W | 130 W |
| Mean Time Between Failures | > 10 years | > 10 years | > 10 years |
| System Specifications | |||
| Switching Capacity (Duplex) | 20 Gbps | 20 Gbps | 20 Gbps |
| Packets Per Second (Duplex) | 30 Mpps | 30 Mpps | 30 Mpps |
| MAC Address Storage | 8 K | 8 K | 8 K |
| Network Latency | 4 μs | 4 μs | 4 μs |
| VLANs Supported | 4 K | 4 K | 4 K |
| Link Aggregation Group Size | 8 | 8 | 8 |
| <pTotal Link Aggregation Groups
</p |
8 | 8 | 8 |
| Packet Buffers | 512 KB | 512 KB | 512 KB |
| DRAM | 256 MB DDR3 | 256 MB DDR3 | 256 MB DDR3 |
| FLASH | 32 MB | 32 MB | 32 MB |
| <pACL
</p |
768 | 768 | 768 |
| Spanning Tree Instances | 16 | 16 | 16 |
| Dimensions | |||
| Height x Depth x Width (inches) | 1.18 x 4.72 x 7.09 | 1.73 x 8.23 x 9.85 | 1.73 x 8.23 x 9.85 |
| Height x Depth x Width (mm) | 30 x 120 x 180 | 44 x 209 x 250 | 44 x 209 x 250 |
| Weight | 1.36 lbs (0.62 kg) | 3.75 lbs (1.70 kg) | 4.05 lbs (1.84 kg) |
| Environment | |||
| Power Required | 100–240V AC, 50/60 Hz / PoE-PSE(af) | 100–240V AC, 50/60 Hz | 100–240V AC, 50/60 Hz |
| Power Supply | 12V/1A DC power adapter included, PoE-PD Built in | AC built in | AC built in |
| Redundant Power | No | No | No |
| Power Consumption | 6.2 W | 74.4 W | 139.2 W |
| <pHeat Dissipation
</p |
21.142 BTU/h | 34.12 BTU/h | 34.56 BTU/h |
| Operating Temperature | 32–113°F (0–45°C) | 32–113°F (0–45°C) | 32–113°F (0–45°C) |
| Storage Temperature | -49–158°F (-40–70°C) | -40–158°F (-40–70°C) | -40–158°F (-40–70°C) |
| Humidity | 5–95% non-condensing | 5–95% non-condensing | 5–95% non-condensing |
| Air-Flow Direction | side-to-back | side-to-back | side-to-back |
| Certification and Compliance | |||
| FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 | |||
| Warranty | |||
| Fortinet Warranty | Limited lifetime* warranty on all models | ||
