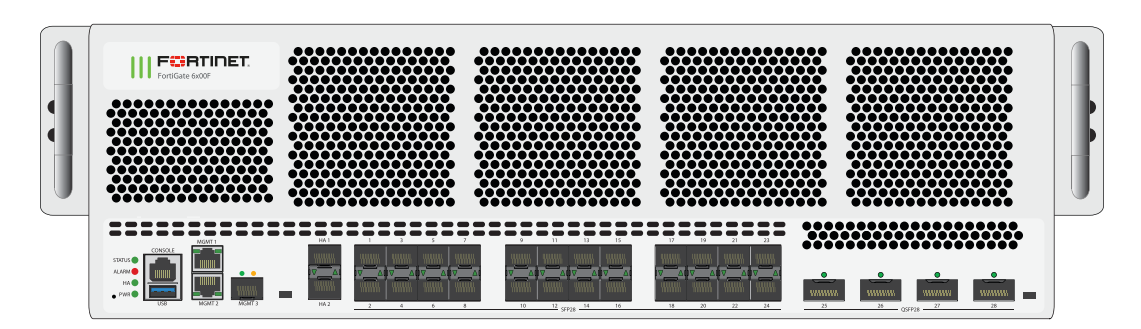

Description
The FortiGate 6000F Series delivers high performance security-driven networks to large enterprises and service providers that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.
Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 6000F Series delivers coordinated, automated, end-to-end threat protection across all use cases.
The industry’s first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 6000F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.
Highlights
-
- Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
- Secure Networking FortiOS delivers converged networking and security
- Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Hyperscale Security to secure any edge at any scale.
| Model | IPS | NGFW | Threat Protection | Interfaces |
| 6001F | 51/17/170 Gbps | 45/15/150 Gbps | 30/10/100 Gbps | Multiple 40/100 GE QSFP28, 1/10/25 GE SFP28, 1/10 GE SFP+ and GE RJ45 slots |
| 6300F/6301F | 110 Gbps | 90 Gbps | 60 Gbps | Multiple 40/100 GE QSFP28, 1/10/25 GE SFP28, 1/10 GE SFP+ and GE RJ45 slots |
| 6500F/6501F | 170 Gbps | 150 Gbps | 100 Gbps | Multiple 40/100 GE QSFP28, 1/10/25 GE SFP28, 1/10 GE SFP+ and GE RJ45 slots |
Specifications:
| 6001F | 6300F/-DC, 6301F/-DC | 6500F/-DC, 6501F/-DC | |
|---|---|---|---|
| Interfaces and Modules | |||
| Hardware Accelerated 40/100 GE QSFP28 Slots |
4 |
||
| Hardware Accelerated 1/10/25 GE SFP28 Slots |
24 |
||
| Hardware Accelerated 10 GE SFP+ Slots |
3 |
||
| GE RJ45 Management Ports |
2 |
||
| USB Ports |
1 |
||
| Console Ports |
1 |
||
| Onboard Storage | 2x 1 TB NVMe | 2x 1 TB NVMe (for 6301F and 6501F only) | 2x 1 TB NVMe (for 6301F and 6501F only) |
| Included Transceivers |
2x SFP+ (SR 10 GE) |
||
| System Performance — Enterprise Traffic Mix | Default/ per FPC / Max | ||
| IPS Throughput | 51 / 17 / 170 Gbps | 110 Gbps | 170 Gbps |
| NGFW Throughput | 45 / 15 / 150 Gbps | 90 Gbps | 150 Gbps |
| Threat Protection Throughput | 30 / 10 / 100 Gbps | 60 Gbps | 110 Gbps |
| System Performance and Capacity | |||
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP packets) | 1518: 120 / 40 / 239 Gbps 512: 120 / 40 / 238 Gbps 1518: 40.5 / 13.5 / 135 Gbps | 239 / 238 / 135 Gbps | 239 / 238 / 135 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP packets) | 1518: 120 / 40 / 239 Gbps 512: 120 / 40 / 238 Gbps 1518: 40.5 / 13.5 / 135 Gbps | 239 / 238 / 135 Gbps | 239 / 238 / 135 Gbps |
| Firewall Latency (64 byte, UDP) | 4.80 μs | 4.80 μs | 4.80 μs |
| Firewall Throughput (Packet per Second) | 60.75 / 20.25 / 202.5 Mpps | 202.5 Mpps | 202.5 Mpps |
| Concurrent Sessions (TCP) | 60 / 20 / 200 Million | 120 Million | 200 Million |
| New Sessions/Sec (TCP) | 900 000 / 300 000 / 3 Million | 2 Million | 3 Million |
| Firewall Policies | 200 000 | 200 000 | 200 000 |
| IPsec VPN Throughput (512 byte)6 | 48 / 16 / 160 Gbps | 96 Gbps | 160 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 16 000 | 16 000 | 16 000 |
| Client-to-Gateway IPsec VPN Tunnels | 90 000 | 90 000 | 90 000 |
| SSL-VPN Throughput7 | 9 Gbps on Master FPC | 9 Gbps | 9 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30 000 | 30 000 | 30 000 |
| SSL Inspection Throughput2 | 33 / 11 / 110 Gbps | 66 Gbps | 110 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 15 000 / 5000 / 50 000 | 30 000 | 50 000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 5.4 / 1.8 / 18 Million | 10 Million | 18 Million |
| Application Control Throughput3 | 66 / 22 / 220 Gbps | 150 Gbps | 220 Gbps |
| CAPWAP Throughput |
N.A. |
||
| Virtual Domains (Default / Maximum) |
10 / 500 |
||
| Maximum Number of FortiSwitches Supported |
256 |
||
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
N.A. |
||
| Maximum Number of FortiTokens |
20, 000 |
||
| High Availability Configurations |
Active-Active (FGSP), Active-Passive, Clustering |
||
| Dimensions and Power | |||
| Height x Width x Length (inches) | 5.3 x 17.2 x 27.3 | 5.20 x 17.20 x 26.18 | 5.3 x 17.2 x 27.3 |
| Height x Width x Length (mm) | 133 x 437 x 694 | 132 x 437 x 665 | 133 x 437 x 694 |
| Weight (maximum) | 78.26 lbs (35.5 kg) 79.59 lbs (36.1 kg) |
67.68 lbs (30.7 kg) 69.00 lbs (31.3 kg) |
78.26 lbs (35.5 kg) 79.59 lbs (36.1 kg) |
| Form Factor |
Rack Mount, 3 RU |
||
| AC Power Supply | 100–240V AC, 50/60 Hz |
100–240V AC, 50/60 Hz |
|
| Power Consumption (Maximum / Average) | 1308 W / 1548 W 1328 W / 1568 W |
977 W / 1217 W 977 W / 1237 W |
1308 W / 1548 W 1328 W / 1568 W |
| AC Current (Maximum) |
30A@100VAC, 20A@240VAC |
||
| DC Power Supply | N/A |
-48 to -60V DC |
|
| DC Current (Maximum) | N/A |
25-32A (x2) |
|
| Power Supply Efficiency Rating |
80Plus Compliant |
||
| Heat Dissipation (Maximum) | 5282 BTU/h / 5350 BTU/h | 4153 BTU/h / 4221 BTU/h | 5282 BTU/h / 5350 BTU/h |
| Redundant Power Supplies |
2+1 Redundant / 1+1 Redundant if using high line power Hot Swappable |
||
| Fan Trays |
Hot Swappable |
||
| Operating Environment and Certifications | |||
| Operating Temperature |
32–104°F (0–40°C) |
||
| Storage Temperature |
-31–158°F (-35–70°C) |
||
| Humidity |
10–90% non-condensing |
||
| Noise Level |
57.43 dBA |
||
| Forced Airflow |
Front to Back |
||
| Operating Altitude |
Up to 7400 ft (2250 m) |
||
| Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
||
| Certifications |
USGv6/IPv6 |
||
