Description

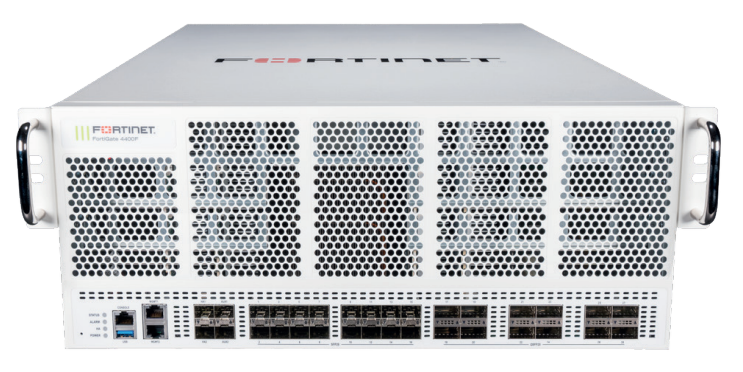

| Model | FortiGate 4401F/ FG-4401F |
| High-Speed Ports | 12x 100GE/40GE QSFP28 slots, 18x 25GE/10GE SFP28 slots |
| Management Ports | 2x GE RJ45 |
| Hardware Acceleration | SPU NP7 and CP9 hardware accelerated |
| Onboard Storage | 2x 2TB storage |
| Power Supply | AC power supplies |
| Promotion | Fortinet High End FortiGate Promotion |
The FortiGate 4400F Series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.
Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 4400F Series delivers coordinated, automated, end-to-end threat protection across all use cases.
The industry’s first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 4400F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.
| IPS | NGFW | Threat Protection | Interfaces |
| 94 Gbps | 82 Gbps | 75 Gbps | Multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP and 100 GE QSFP28 / 40 GE QSFP+ slots | DC Variants |
Highlights
Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
Security-Driven Networking FortiOS delivers converged networking and security.
Unparalleled Performance with Fortinet’s patented /SPU / vSPU processors.
Enterprise Security with consolidated AI /ML-powered FortiGuard Services.
Hyperscale Security to secure any edge at any scale.
Specifications:
| FG-4400F/-DC | FG-4401F/-DC | |
|---|---|---|
| Interfaces and Modules | ||
| Hardware Accelerated 100 GE QSFP28 /40 GE QSFP+ Slots | 12 | |
| Hardware Accelerated 25 GE SFP28 /10 GE SFP+ / GE SFP Slots | 16 | |
| Hardware Accelerated 25 GE SFP28 /10 GE SFP+ / GE SFP HA Slots | 2 | |
| Hardware Accelerated 25 GE SFP28 /10 GE SFP+ / GE SFP AUX Slots | 2 | |
| GE RJ45 Management Ports | 2 | |
| USB 3.0 Port | 1 | |
| Console Port | 1 | |
| Onboard Storage | — | 2x 2 TB SSD |
| Included Transceivers | 2x SFP+ (SR 10 GE) | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput2 | 94 Gbps | |
| NGFW Throughput2, 4 | 82 Gbps | |
| Threat Protection Throughput 2, 5 | 75 Gbps | |
| System Performance and Capacity | ||
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 1.15 / 1.14 / 0.50 Tbps | |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 1.15 / 1.14 / 0.50 Tbps | |
| Firewall Latency (64 byte, UDP) | 2.98 μs | |
| Firewall Throughput (Packet per Second) | 750 Mpps | |
| Concurrent Sessions (TCP) | 210 Million / 700 Million* | |
| New Sessions/Second (TCP) | 1 Million / 10 Million* | |
| Firewall Policies | 400 000 | |
| IPsec VPN Throughput (512 byte)1 | 310 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 40 000 | |
| Client-to-Gateway IPsec VPN Tunnels | 200 000 | |
| SSL-VPN Throughput | 16 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30 000 | |
| SSL Inspection Throughput (IPS, avg HTTPS)3 | 86 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 70 000 | |
| SSL Inspection Concurrent Session (IPS, avg HTTPS)3 | 9 Million | |
| Application Control Throughput (HTTP 64K)2 | 140 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 63 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 500 | |
| Maximum Number of FortiSwitches Supported | 300 | |
| Maximum Number of FortiAPs (Total /Tunnel) | 8192 / 4096 | |
| Maximum Number of FortiTokens | 20 000 | |
| Maximum Number of Registered FortiClients | 20 000 | |
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |
| Dimensions and Power | ||
| Height x Width x Length (inches) | 6.97 x 17.20 x 26.17 | |
| Height x Width x Length (mm) | 177 x 437 x 665 | |
| Weight | 81.8 lbs (37.1 kg) | 83.1 lbs (37.7 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 4RU | |
| AC Power Supply | 100–240V AC, 50/60 Hz | |
| Power Consumption (Average / Maximum) | 1533W / 1875W | 1539W / 1881W |
| AC Current (Maximum) | 20A@100V, 9A@240V | |
| DC Power Supply | -48V to -60V DC | |
| DC Current (Average / Maximum) | 32A /100 Apk | |
| Heat Dissipation | 6397.77 BTU/h | 6418.24 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes, Hot Swappable, 2+2 (AC), 1+1 (DC) | |
| Power Supply Efficiency Rating | 80Plus Compliant | |
| Fan Tray | Hot Swappable | |
| Operating Environment and Certifications | ||
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) | |
| Humidity | 20% to 90% non-condensing | |
| Noise Level | 68.9 dBA | |
| Forced Airflow | Front to Back | |
| Operating Altitude | Up to 7400 ft (2250 m)** | |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB | |
| Certifications | USGv6/IPv6 | |
