Description

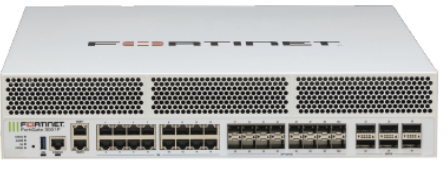

| Model | FortiGate 3000F/ FG-3000F |
| High-Speed Ports | 6x 100GE QSFP28 slots |
| Ethernet Ports | 16x 10GE SFP+/25GE SFP28 slots (14x ports, 2x HA ports), 18x 10G Base-T (2x MGMT ports) |
| Hardware Acceleration | SPU NP7 and CP9 hardware accelerated |
| Power Supply | 2 AC power supplies |
| Promotion | Fortinet High End FortiGate Promotion |
The FortiGate 3000F Series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.
Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 3000F Series delivers coordinated, automated, end-to-end threat protection across all use cases.
The industry’s first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 3000F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.
| IPS | NGFW | Threat Protection | Interfaces |
| 36 Gbps | 34 Gbps | 33 Gbps | Multiple 10/1 GE RJ45, 100 GE QSFP28, 40 GE QSFP+, 25 GE SFP28, 10 GE SFP+ slots |
Highlights
Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
Security-Driven Networking FortiOS delivers converged networking and security.
Unparalleled Performance with Fortinet’s patented /SPU / vSPU processors.
Enterprise Security with consolidated AI /ML-powered FortiGuard Services.
Hyperscale Security to secure any edge at any scale.
Specifications:
| FG-3000F/-DC | FG-3001F/-DC | |
|---|---|---|
| Interfaces and Modules | ||
| Hardware Accelerated 100 GE QSFP28 /40 GE QSFP+ Slots | 6 | |
| Hardware Accelerated 25 GE SFP28 /10 GE SFP+ / GE SFP Slots | 16 (include 2x HA Slots) | |
| Hardware Accelerated 10 GE / 5 GE / 2.5 GE / GE RJ45 Ports | 16 | |
| 10GE/ GE RJ45 Management Ports | 2 | |
| USB Ports (Client / Server) | 1/1 | |
| Console Port | 1 | |
| Onboard Storage | — | 2x 1TB SSD |
| Trusted Platform Module (TPM) | Yes | |
| Included Transceivers | 2x SFP+ (SR 10 GE) | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput2 | 36 Gbps | |
| NGFW Throughput2, 4 | 34 Gbps | |
| Threat Protection Throughput 2, 5 | 33 Gbps | |
| System Performance and Capacity | ||
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 397 / 389 / 221 Gbps | |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 397 / 389 / 221 Gbps | |
| Firewall Latency (64 byte, UDP) | 3.92 μs | |
| Firewall Throughput (Packet per Second) | 331.5 Mpps | |
| Concurrent Sessions (TCP) | 70 Million / 230 Million** | |
| New Sessions/Second (TCP) | 870 000 / 3 Million** | |
| Firewall Policies | 200 000 | |
| IPsec VPN Throughput (512 byte)1 | 105 Gbps> | |
| Gateway-to-Gateway IPsec VPN Tunnels | 40 000 | |
| Client-to-Gateway IPsec VPN Tunnels | 200 000 | |
| SSL-VPN Throughput6 | 11 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30 000 | |
| SSL Inspection Throughput (IPS, avg HTTPS)3 | 29 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 29 000 | |
| SSL Inspection Concurrent Session (IPS, avg HTTPS)3 | 7.5 Million | |
| Application Control Throughput (HTTP 64K)2 | 115 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 500 | |
| Maximum Number of FortiSwitches Supported | 300 | |
| Maximum Number of FortiAPs (Total /Tunnel) | 4096 / 2048 | |
| Maximum Number of FortiTokens | 20 000 | |
| Maximum Number of Registered FortiClients | 20 000 | |
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |
| Dimensions and Power | ||
| Height x Width x Length (inches) | 3.5 x 17.44 x 21.89 | |
| Height x Width x Length (mm) | 88.9 x 443 x 556 | |
| Weight | 37.3 lbs (16.9 kg) | 38.2 lbs (17.3 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 2 RU | |
| Power Consumption (Average / Maximum) | 425 W / 680 W | 420 W / 690 W |
| AC Power Supply | 100–240V AC, 50/60 Hz | |
| AC Current (Maximum) | 12A@100V, 9A@240V | |
| DC Power Supply | 48-60VDC | |
| DC Current (Maximum) | 15A@48V, 9A@240V | |
| Heat Dissipation | 2321 BTU/h | 2356 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes (Default dual AC PSU for 1+1 Redundancy) |
|
| Power Supply Efficiency Rating | 80Plus Compliant | |
| Operating Environment and Certifications | ||
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) | |
| Humidity | 5% to 90% non-condensing | |
| Noise Level | 69 dBA | |
| Forced Airflow | Front to Back | |
| Operating Altitude | Up to 10 000 ft (3048 m) | |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB | |
| Certifications | USGv6/IPv6 | |
