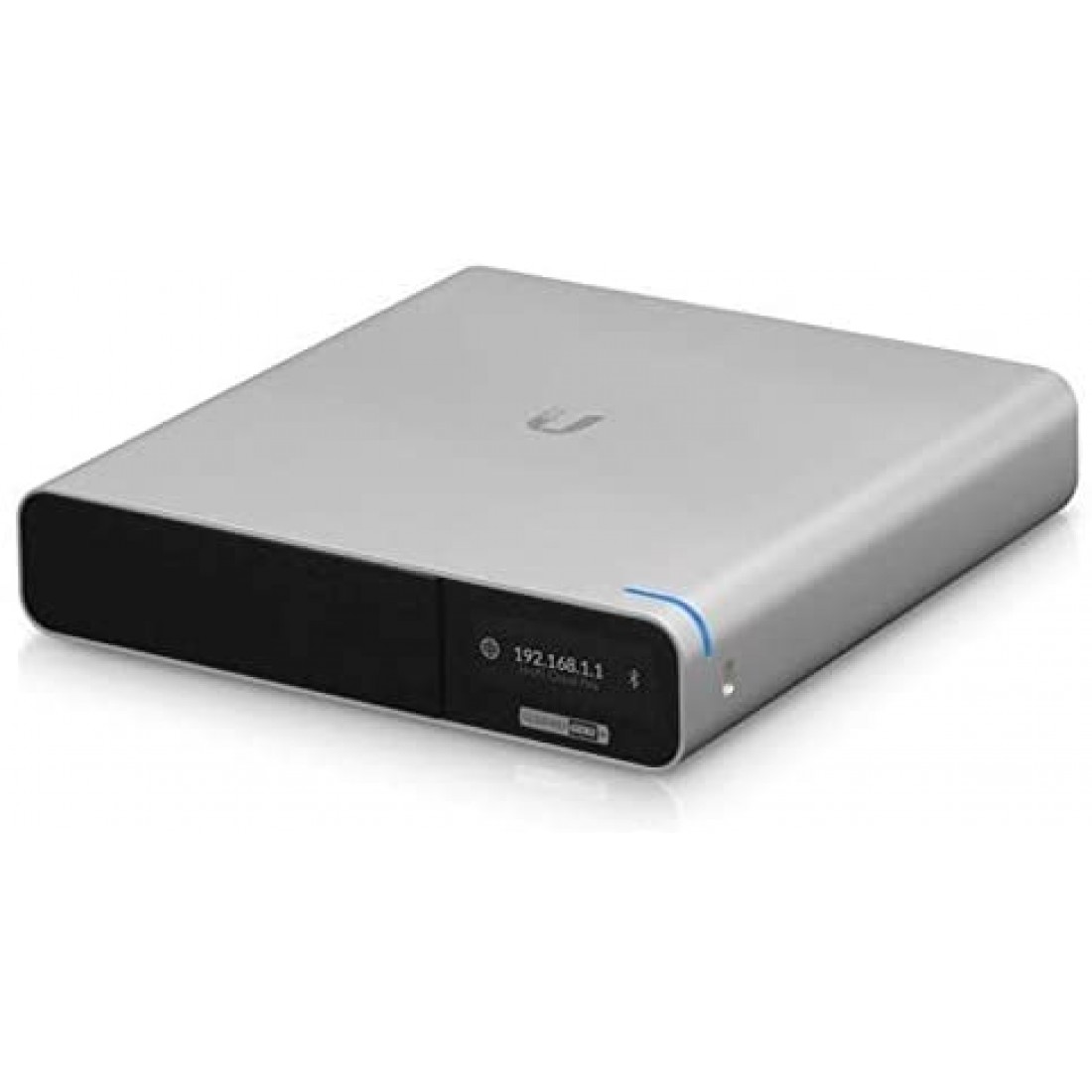

Cloud Key Gen2 Plus UCK-G2-PLUS

Description

Mechanical
Dimensions    131.16 x 27.10 x 134.20 mm (5.16 x 1.07 x 5.28″)
Weight    582 g (1.28 lb)
Enclosure material    Anodized aluminum
Hardware
Processor    Quad core Arm® Cortex®-A53 based chip
eMMC memory    32 GB
Hard drive capacity    1 TB 2.5″ SATA HDD (user-upgradeable*)
* The Cloud Key Gen2 Plus only supports hard drives that can operate on 5V power. Hard drives that require additional power are not supported.
Device capacity    UniFi Protect mode:
Up to 20 G3 cameras
Up to 10 G4 cameras

UniFi SDN + UniFi Protect:
Up to 15 G3 cameras and 50 UniFi devices
Up to 7 G4 cameras
Power method    802.3af PoE
Quick charge 2.0/3.0 power adapter, 9VDC, 2A
Max. power consumption    12.95W
Networking interface    GbE RJ45 port
Management interface    UniFi Protect
Buttons    (1) Power
(1) Factory reset
LEDs    (1) Power: white/blue
Operating temperature    0 to 35° C (32 to 104° F)
Operating humidity    20 to 80% noncondensing
Certifications    FCC, CE, IC
